真空包裝機

自2014年成立以來，廣州邁馳包裝設備有限公司專注於真空包裝技術的研發與應用，致力於為各行各業提供高效、可靠的包裝設備解決方案。公司產品涵蓋了外抽式真空包裝機、充氮氣鎖鮮包裝設備等多個係列，廣泛應用於食品、醫藥、電子、化工等行業領域。憑借強大的技術力量和創新精神，邁馳包裝已經成為行業內領先的包裝設備製造商之一。

包裝物料：

廣泛適用於肉類、海鮮、蔬菜、果品、堅果等多種食品。

主要參數：

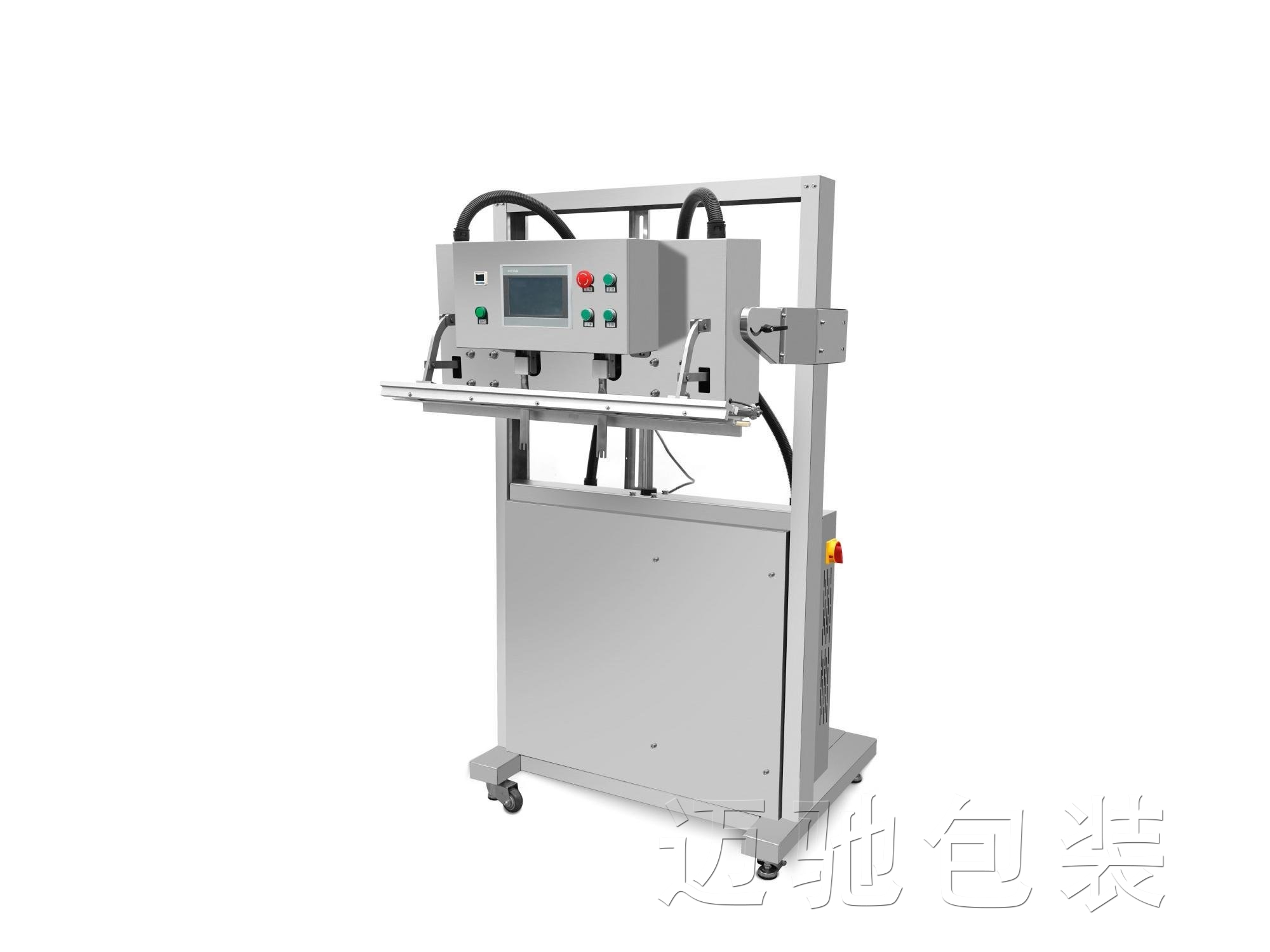

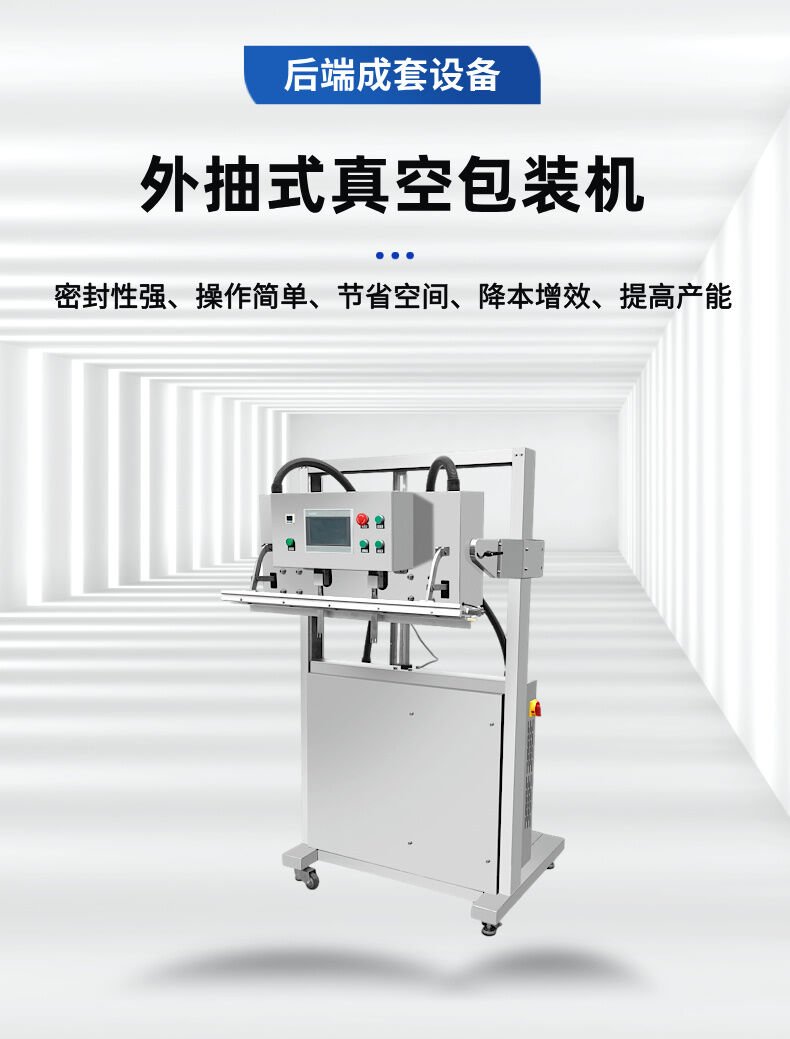

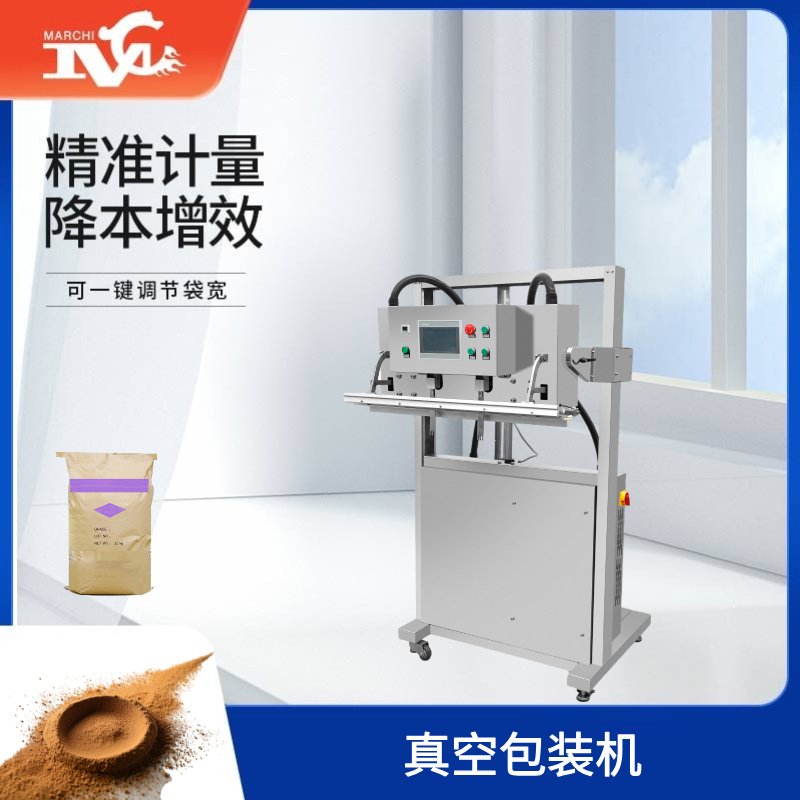

設備名稱：1000外抽真空包裝機

電源電壓：三相/380V

封口長度：1000mm × 1條

封口高度：950-1400mm

封口旋轉角度：0-90度（垂直至水平）

包裝材料：適用於各種複合薄膜或鋁箔膜袋

機器材質：采用優質304不鏽鋼，確保設備的耐用性和安全性

熱封瞬間加熱功率：1400W × 1條

工作台高度：可根據需求自配

抽氣效率：高達20立方米/小時，確保高效抽真空

最低絕對負壓：≤200pa，保證真空包裝效果

機器尺寸：1071×1227×1850mm，適合大多數工作環境

總功率：2KW，節能高效

整機重量：200KG，穩固耐用

PLC：采用JT-16，控製精度高

觸摸屏：MCGS-TPC7012，操作界麵簡潔直觀

1000外抽真空包裝機通過一係列自動化操作幫助企業提升生產效率。操作人員隻需將包裝物擺放整齊，封口區域對準封口條，然後按下啟動按鈕或踩下腳踏開關，設備將自動完成包括壓袋、抽真空、充氣、二次真空、封口、冷卻及上升回位等多個動作。該設備具有多種動作模式可供選擇，極大提升了操作便捷性與工作效率。

Since its establishment in 2014, Guangzhou Maichi Packaging Equipment Co., Ltd. has focused on the research and application of vacuum packaging technology, dedicated to providing efficient and reliable packaging equipment solutions for various industries. The company’s product range includes external vacuum packaging machines, nitrogen gas flushing fresh-keeping packaging equipment, and other series, widely applied in industries such as food, pharmaceuticals, electronics, and chemicals. With strong technical capabilities and an innovative spirit, Maichi Packaging has become one of the leading packaging equipment manufacturers in the industry.

Packaging Materials:

Widely suitable for various foods such as meat, seafood, vegetables, fruits, and nuts.

Main Parameters:

Equipment Name: 1000 External Vacuum Packaging Machine

Power Voltage: Three-phase / 380V

Sealing Length: 1000mm × 1 strip

Sealing Height: 950-1400mm

Sealing Rotation Angle: 0-90 degrees (from vertical to horizontal)

Packaging Material: Suitable for various composite films or aluminum foil bags

Machine Material: Made of high-quality 304 stainless steel, ensuring durability and safety

Heat Sealing Instant Heating Power: 1400W × 1 strip

Worktable Height: Can be customized as required

Vacuum Efficiency: Up to 20 cubic meters per hour, ensuring efficient vacuuming

Minimum Absolute Vacuum: ≤200pa, ensuring effective vacuum packaging

Machine Size: 1071×1227×1850mm, suitable for most working environments

Total Power: 2KW, energy-efficient

Machine Weight: 200KG, stable and durable

PLC: Uses JT-16, with high control accuracy

Touch Screen: MCGS-TPC7012, user-friendly and intuitive operation interface

The 1000 External Vacuum Packaging Machine improves production efficiency through a series of automated operations. Operators only need to place the packaging material neatly, align the sealing area with the sealing bar, and then press the start button or step on the footswitch. The machine will automatically complete multiple actions, including bag pressing, vacuuming, gas flushing, secondary vacuuming, sealing, cooling, and return to the original position. The equipment offers various operation modes, greatly enhancing ease of operation and work efficiency.
