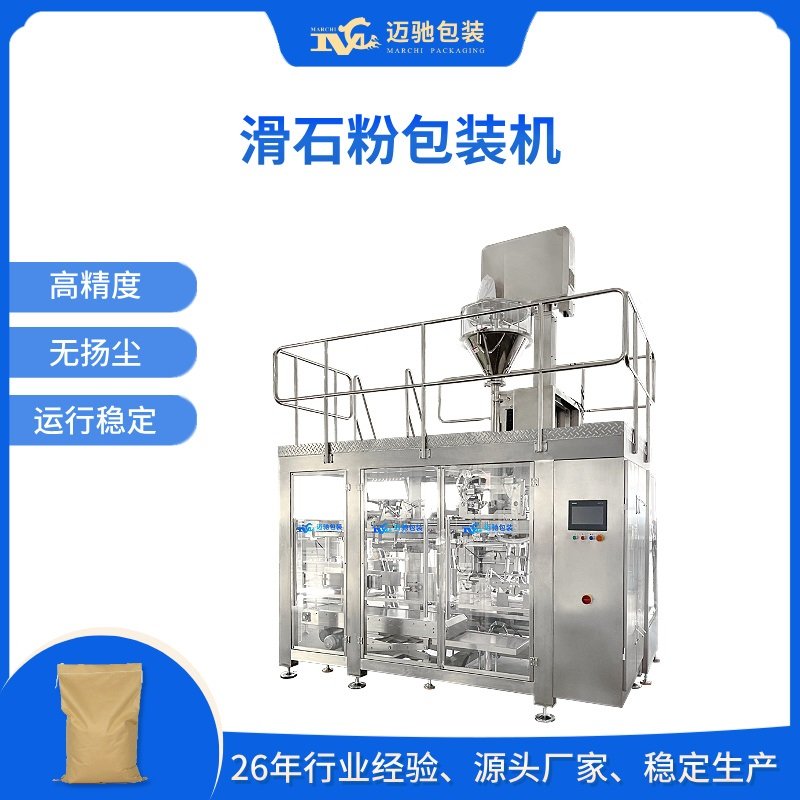

滑石粉包裝機

可包裝：

增強材料、各種纖維、顏料、色母粒、樹脂、聚氨酯、添加劑、膠粘劑、抗氧劑、抗霧劑、抗靜電劑、密封劑、阻聚劑、光穩定劑、著色劑、偶聯劑、阻燃劑、成型劑、熱穩定劑、潤滑劑、增塑劑、抗紫外光穩劑、鈦白粉、碳酸鈣、滑石粉等。

設備簡介：

適合重量較大的物料包裝，穩定性強，適應高負荷工作環境。

1.自動包裝機，可實現自動計量，自動上袋、自動充填、自動熱合縫包一體等一係列工作，不需要人工操作。節省人力資源，降低長期成本投入。也可與其它配套設備完成整條流水線作業。

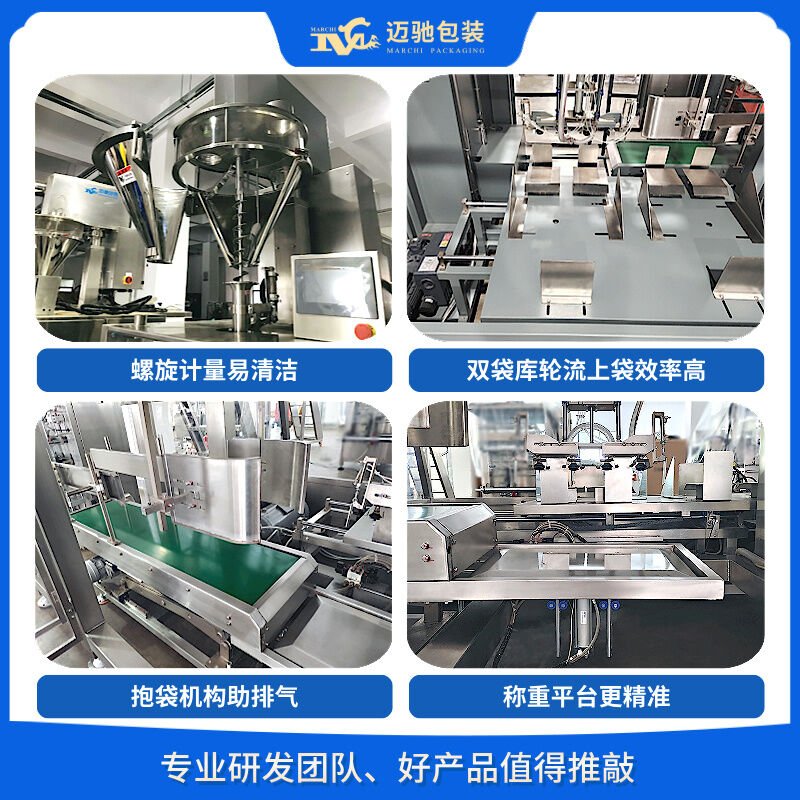

2.稱量機采用立式螺杆給料，由單螺杆構成。螺杆由伺服電機直接驅動保證計量的速度和精度。工作時，螺杆根據控製信號旋轉供料；稱重傳感器和稱重控製器進行稱重信號的處理,並輸出重量數據顯示及控製信號。

3.本機組由備袋庫、取袋理袋裝置、上袋機械手、夾袋下料裝置、抱袋推動裝置、袋口導向裝置、真空係統及控製係統等組成；采用從備袋庫取袋，袋子對中定位，袋子往前送，袋口定位，預開袋，上袋機械手插刀插入袋口，同時兩側氣抓夾住袋口兩側，最後上袋。

設備參數：

設備型號：MCZD-25F

給料方式：單螺旋給料

包裝重量(千克)：5～25

包裝精度：≤±0.1～0.2%

包裝速度(包/分)：1.5～2

袋子尺寸(毫米)：L:500～1000

袋子材質：牛皮紙複膜袋、編織袋、塑料袋、編織袋等

Packaging Available:

Reinforcement materials, various fibers, pigments, masterbatches, resins, polyurethane, additives, adhesives, antioxidants, anti-fog agents, antistatic agents, sealants, anti-blocking agents, light stabilizers, colorants, coupling agents, flame retardants, molding agents, thermal stabilizers, lubricants, plasticizers, UV stabilizers, titanium dioxide, calcium carbonate, talc powder, etc.

Equipment Introduction:

Suitable for packaging heavier materials, with strong stability, and adaptable to high-load working environments.

1、Automatic packaging machine that can achieve automatic measurement, automatic bagging, automatic filling, and automatic heat sealing, all without manual operation. Saves human resources and reduces long-term cost investment. It can also work with other auxiliary equipment to complete a full production line operation.

2、The weighing machine uses vertical screw feeding, consisting of a single screw. The screw is directly driven by a servo motor to ensure the speed and accuracy of measurement. During operation, the screw rotates to feed according to control signals; the weighing sensor and weighing controller process the weighing signals and output weight display and control signals.

3、This machine set consists of a bag storage library, bag picking and arranging device, bagging robotic arm, bag-clamping discharging device, bag-holding pushing device, bag mouth guiding device, vacuum system, and control system; it uses bag extraction from the bag storage library, bag centering and positioning, forward bag feeding, bag mouth positioning, pre-opening the bag, and the bagging robotic arm inserting a knife into the bag mouth, while both sides use air grippers to hold the sides of the bag mouth, and finally bagging.

Equipment Parameters:

Model: MCZD-25F

Feeding Method: Single screw feeding

Packaging Weight (kg): 5–25

Packaging Accuracy: ≤±0.1–0.2%

Packaging Speed (bags/min): 1.5–2

Bag Size (mm): L: 500–1000

Bag Material: Kraft paper laminated bags, woven bags, plastic bags, woven bags, etc.
