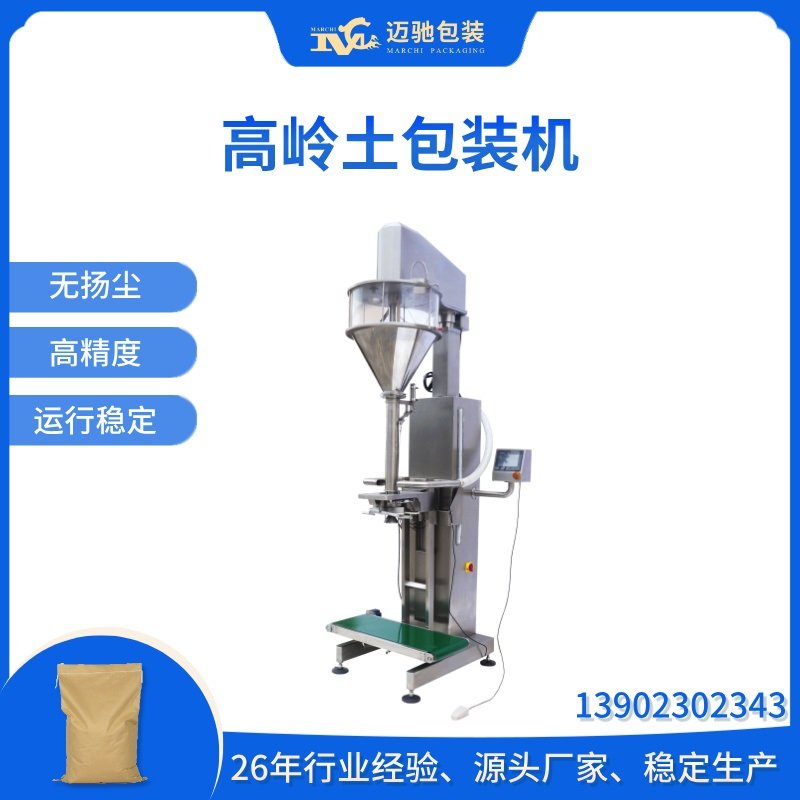

高嶺土包裝機

可包裝：

膨潤土、滑石粉、雲母粉、矽灰石粉、長石粉、重鈣粉、輕鈣粉、白雲石粉、石英粉、矽微粉、白炭黑、矽藻土、凹凸棒土、海泡石粉、蒙脫石粉、累托石、煆燒土、陶土、瓷土、葉蠟石粉、鋁礬土粉、粉煤灰、礦渣微粉等。

設備簡介：

該機采用底充式灌裝，灌裝過程中從底部進行充填，落差小，無揚塵，適用於包裝精度要求高的，或密度不均勻的，流動性好的或者流動性差的粉末、小顆粒物料。

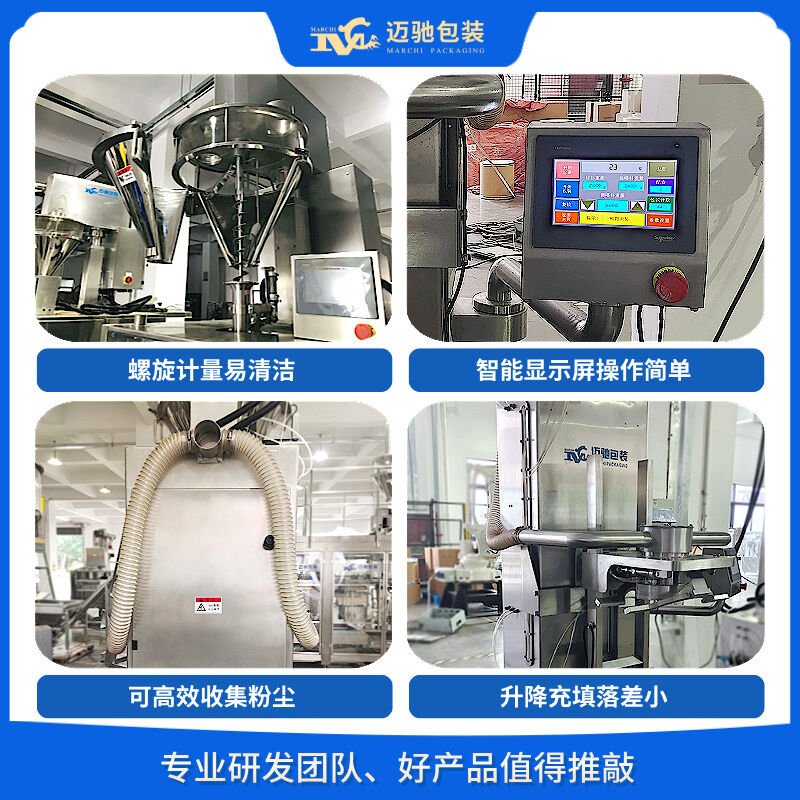

1.全不鏽鋼結構，組合式或開啟式透明料箱，無需工具即可方便拆洗

2.氣動夾袋裝置和托架裝在重量傳感器上，根據預先設定的重量進行快速和慢速充填

3.高反應速度的稱重係統，保證高精度得以實現

4.PLC控製、觸摸屏人機界麵顯示，操作簡便

5.各種產品調整參數配方可儲存，備後使用，儲存10個配方

包裝流程：

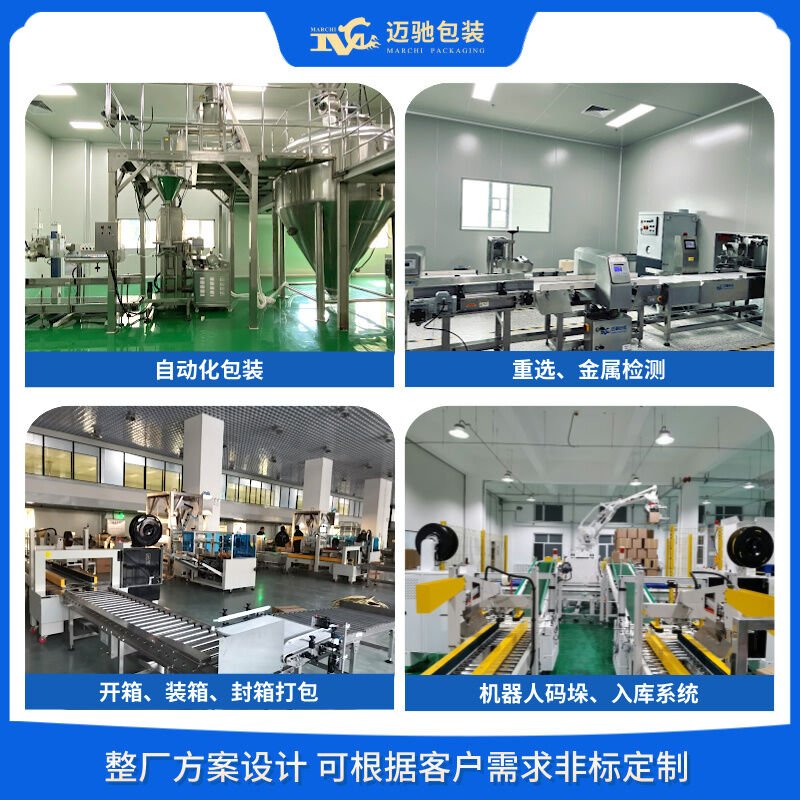

投料→混合→提升→包裝→封口縫包機→重選→金檢→碼垛

設備參數：

設備型號：MC-DLLB-100L

包裝重量(千克)：5～25

包裝精度：±0.1～0.5%

包裝速度(包/分鍾)：1～4

電源：3P AC 208～415V 50/60Hz

整機功率(千瓦)：2.87

整機重量(千克)：450

Packaging Available:

Bentonite, talc powder, mica powder, wollastonite powder, feldspar powder, heavy calcium powder, light calcium powder, dolomite powder, quartz powder, silicon micro powder, white carbon black, diatomaceous earth, attapulgite clay, sepiolite powder, montmorillonite powder, halloysite, calcined clay, earthenware clay, porcelain clay, soapstone powder, bauxite powder, fly ash, slag micro powder, etc.

Equipment Introduction:

This machine uses a bottom-filling method. During the filling process, it fills from the bottom with minimal drop, no dust, making it suitable for packaging applications that require high accuracy or uneven density, and materials with either good or poor flowability, such as powders and small particles.

Full stainless steel structure, modular or open transparent material hopper, easy to disassemble and clean without tools.

Pneumatic bag-clamping device and bracket mounted on the weight sensor, enabling fast and slow filling based on preset weight.

High-speed responsive weighing system ensures high accuracy.

PLC control with touch screen human-machine interface display for easy operation.

Various product adjustment parameters can be stored for later use, with the ability to store up to 10 formulas.

Packaging Process:

Ingredient Feeding → Mixing → Lifting → Packaging → Sealing and Stitching Machine → Re-weighing → Metal Detection → Palletizing

Equipment Parameters:

Model: MC-DLLB-100L

Packaging Weight (kg): 5～25

Packaging Accuracy: ±0.1～0.5%

Packaging Speed (bags/min): 1～4

Power Supply: 3P AC 208～415V 50/60Hz

Total Power (kW): 2.87

Total Weight (kg): 450
