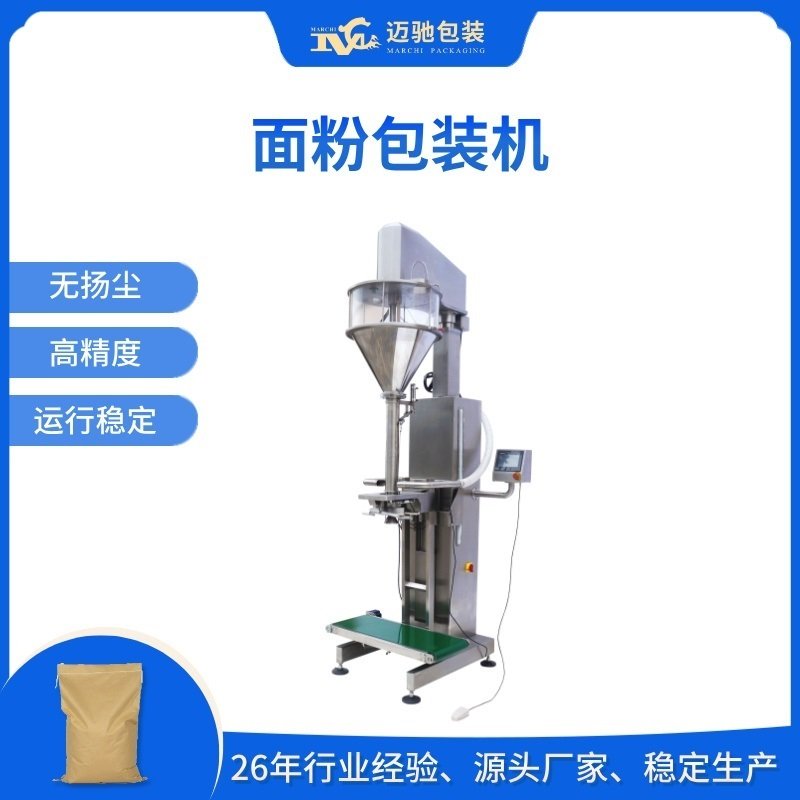

麵粉包裝機

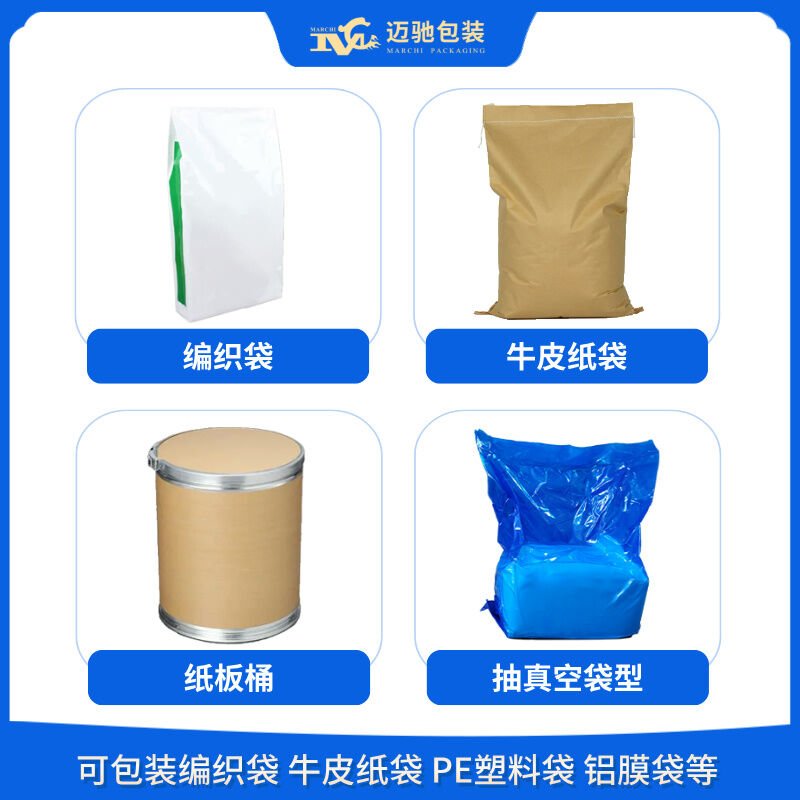

可包裝：

設備簡介：

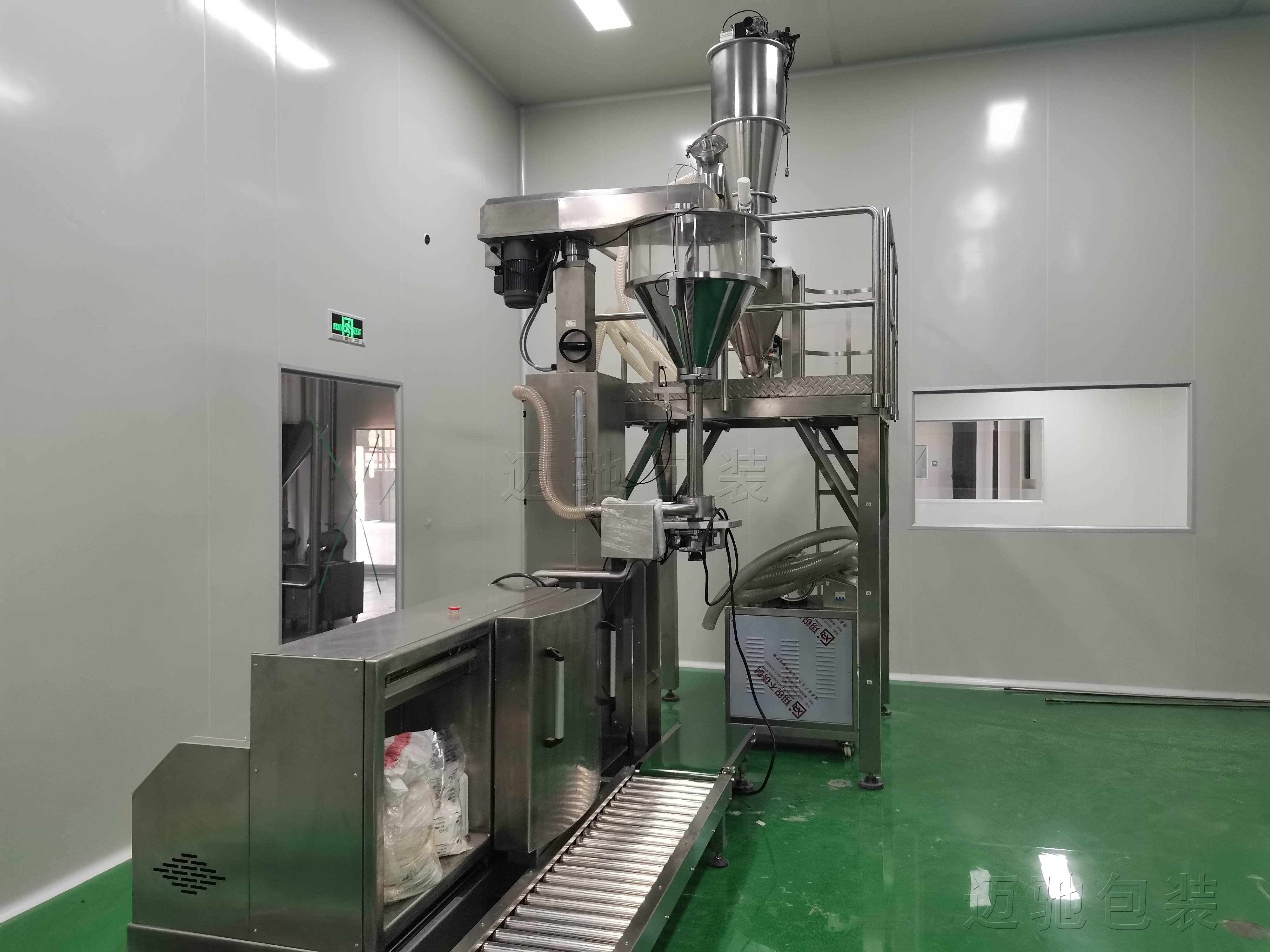

該機采用底充式灌裝，灌裝過程中從底部進行充填，落差小，無揚塵，適用於包裝精度要求高的，或密度不均勻的，流動性好的或者流動性差的粉末、小顆粒物料。

1.全不鏽鋼結構，組合式或開啟式透明料箱，無需工具即可方便拆洗

2.氣動夾袋裝置和托架裝在重量傳感器上，根據預先設定的重量進行快速和慢速充填

3.高反應速度的稱重係統，保證高精度得以實現

4.PLC控製、觸摸屏人機界麵顯示，操作簡便

5.各種產品調整參數配方可儲存，備後使用，儲存10個配方

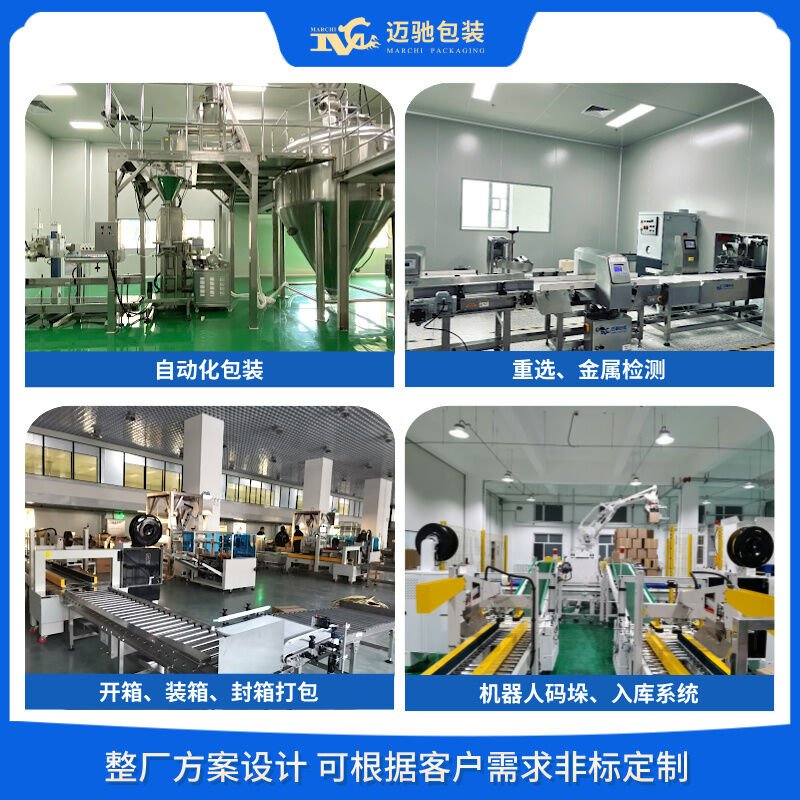

包裝流程：

投料→混合→提升→包裝→封口縫包機→重選→金檢→碼垛

設備參數：

設備型號：MC-DLLB-100L

包裝重量(千克)：5～25

包裝精度：±0.1～0.5%

包裝速度(包/分鍾)：1～4

電源：3P AC 208～415V 50/60Hz

整機功率(千瓦)：2.87

整機重量(千克)：450

Packaging Available:

Maichi Packaging Equipment is a professional manufacturer of fully automatic bag-type vacuum packaging machines. Our machines are suitable for packaging a wide variety of powders and seasonings, including flour, corn flour, rice flour, soy protein powder, enzyme preparations, oat powder, multigrain powder, buckwheat powder, walnut powder, almond powder, fruit and vegetable powders, carrot powder, pectin powder, yam powder, potato powder, seasonings, compound seasonings, black pepper powder, chili powder, curry powder, five-spice powder, corn starch, potato starch, sweet potato starch, milk powder, skimmed milk powder, whole milk powder, coconut powder, desiccated coconut powder, cocoa powder, shiitake mushroom powder, garlic powder, turmeric powder, and more.

Equipment Introduction:

This machine uses a bottom-filling method. During the filling process, it fills from the bottom with minimal drop, no dust, making it suitable for packaging applications that require high accuracy or uneven density, and materials with either good or poor flowability, such as powders and small particles.

Full stainless steel structure, modular or open transparent material hopper, easy to disassemble and clean without tools.

Pneumatic bag-clamping device and bracket mounted on the weight sensor, enabling fast and slow filling based on preset weight.

High-speed responsive weighing system ensures high accuracy.

PLC control with touch screen human-machine interface display for easy operation.

Various product adjustment parameters can be stored for later use, with the ability to store up to 10 formulas.

Packaging Process:

Ingredient Feeding → Mixing → Lifting → Packaging → Sealing and Stitching Machine → Re-weighing → Metal Detection → Palletizing

Equipment Parameters:

Model: MC-DLLB-100L

Packaging Weight (kg): 5～25

Packaging Accuracy: ±0.1～0.5%

Packaging Speed (bags/min): 1～4

Power Supply: 3P AC 208～415V 50/60Hz

Total Power (kW): 2.87

Total Weight (kg): 450
